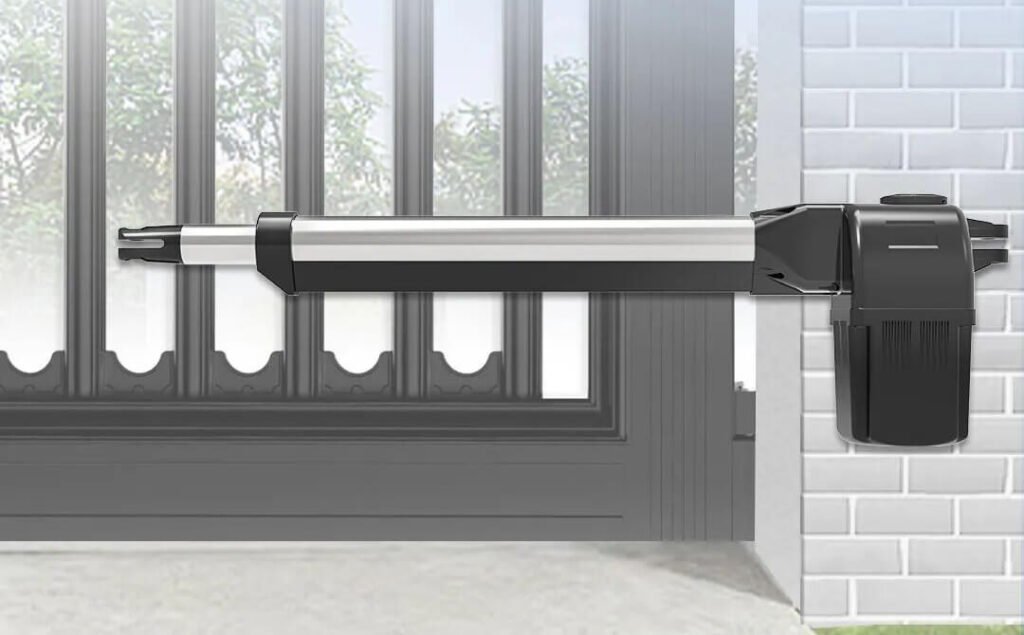

The PK60 Heavy Duty Swing Gate Opener is a remarkable new solution for swing gates, blending advanced tech, safety, and versatility.
Performance & Safety
First, it runs stably with soft start and slow stop functions, which effectively reduces wear on internal components. Additionally, for safety, it is equipped with anti-pressure and anti-crush features—specifically, it automatically stops if it hits an obstacle while opening and reverses direction when closing. Moreover, an emergency release function is also available for unexpected situations.
Heavy Duty Swing Gate Opener: Quality & Craftsmanship

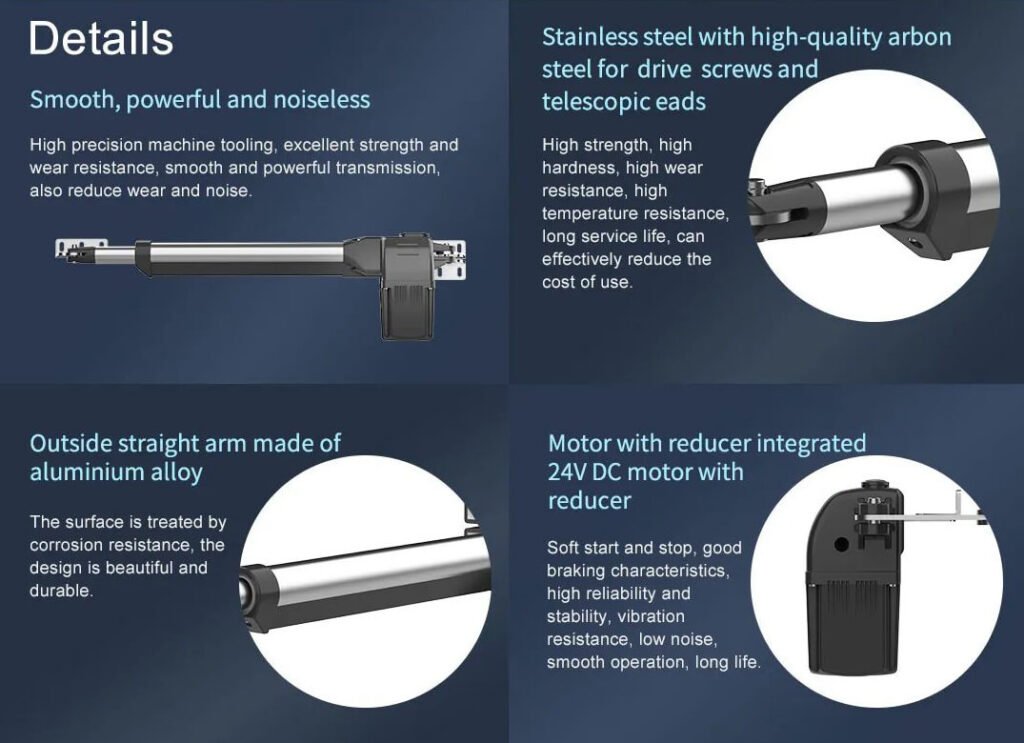

This opener is crafted to European Union standards, and it serves as an improved version of ACCESS TECH’s 10-year best-selling export product. Secondly, it is made via high-precision machining, so it boasts great strength and wear resistance. Furthermore, it uses high-quality corrosion-resistant materials, which not only extend its service life and ensure stable operation but also make installation easy.

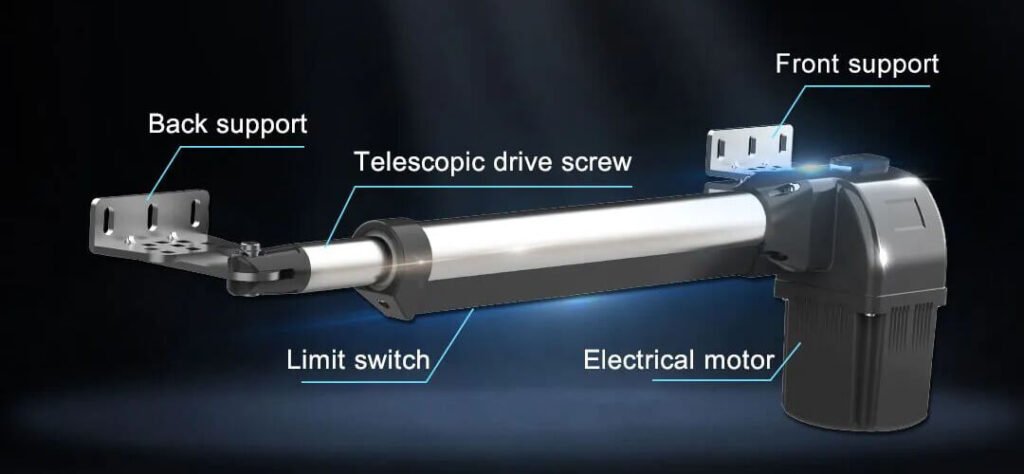

Core Components

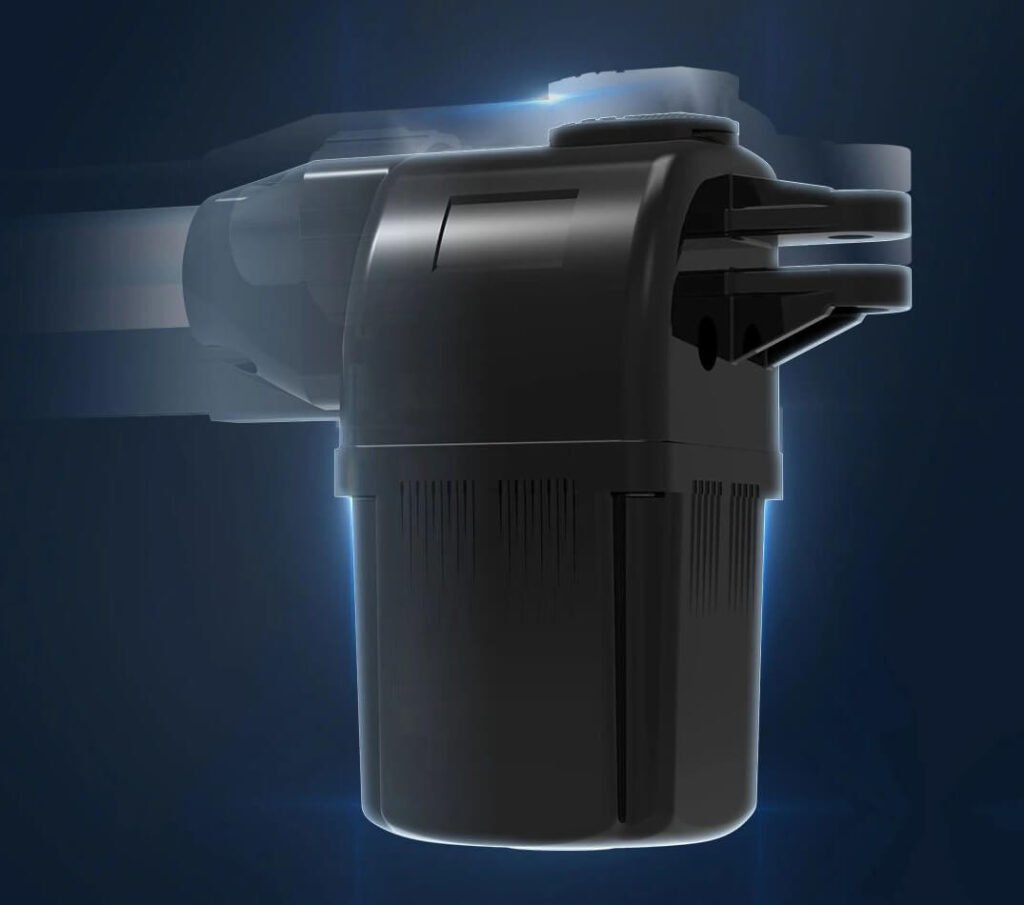

Integrated DC Motor: A 24V DC motor with an integrated reducer ensures high efficiency, precise operation, and low failure rate.

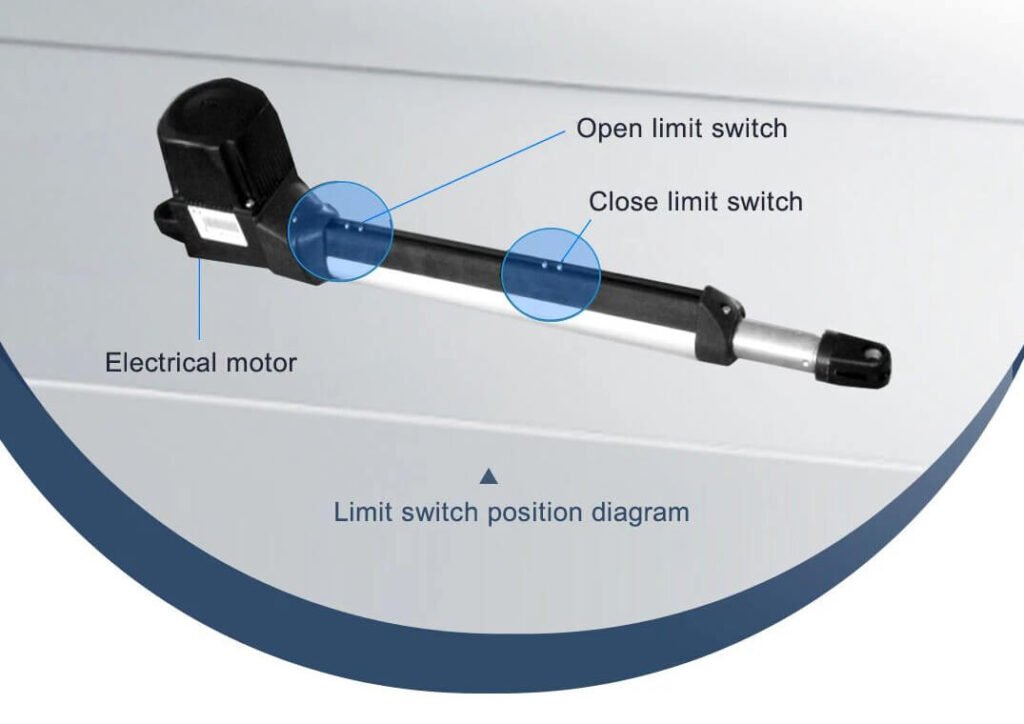

Magnetic Limit Switch & Screw Drive: On one hand, the screw drive provides strong push-pull force, high security, and a long service life. On the other hand, the magnetic double limit switch works without contact or wear, and it has advantages like a long sensing distance and stable frequent switching. Related Parts: Open limit switch, Close limit switch
Worm-gear Reduction: A precision-matched worm gear reducer is adopted. This enables smooth, low-vibration, and noiseless operation, which further enhances user experience.

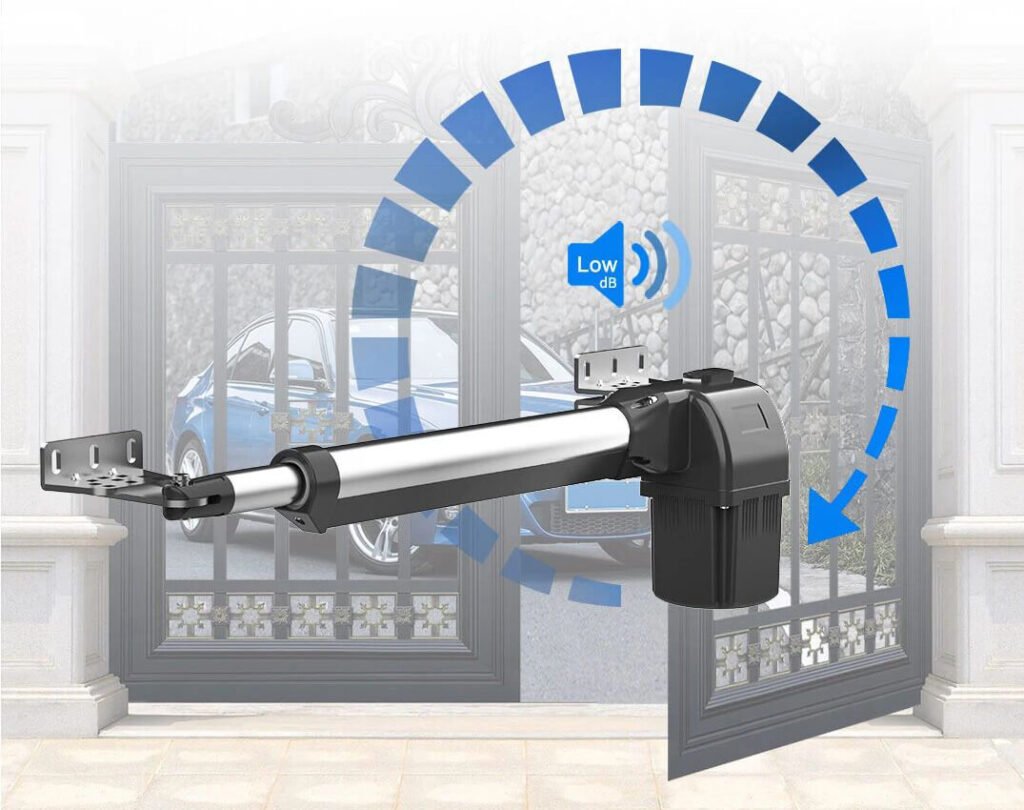

Low dB Operation: Thanks to the above components, the opener maintains low noise levels during use.
Intelligent Functions

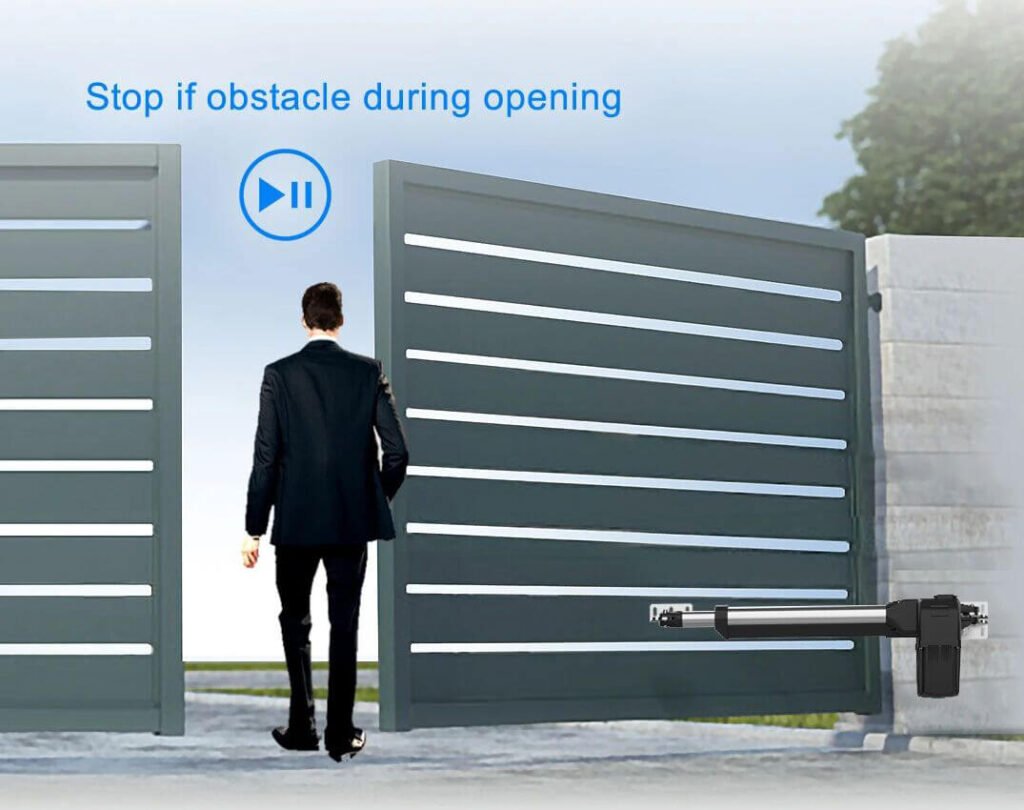

Obstacle Detection & Force Adjustment: It can automatically stop or reverse when detecting an obstacle. Besides, the open/close force is adjustable to adapt to different usage conditions.

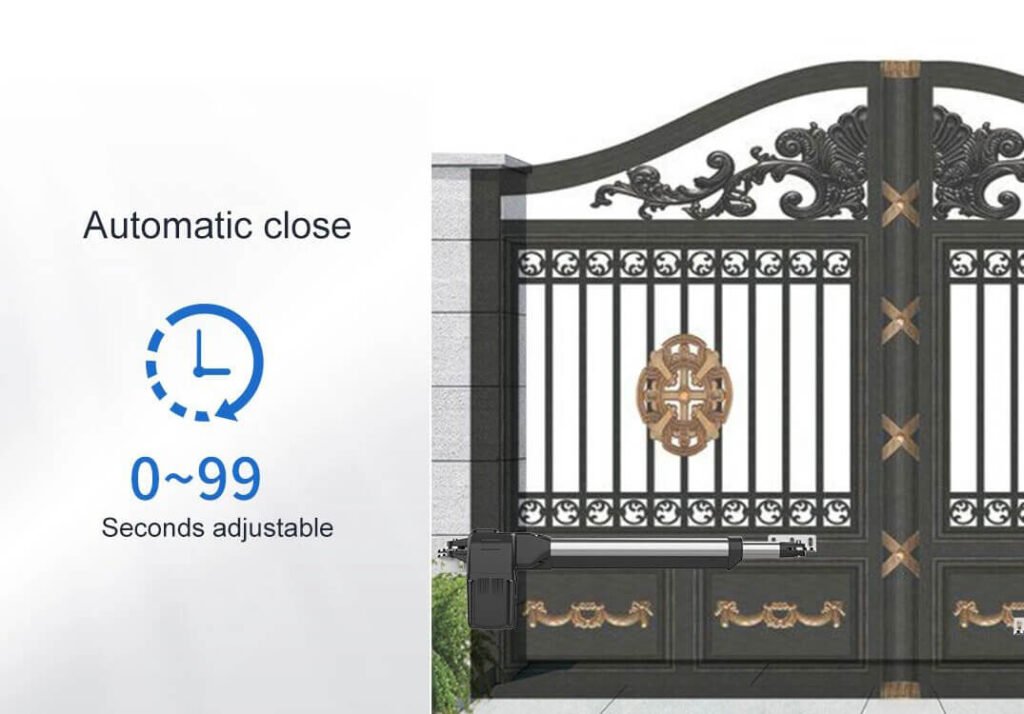

Adjustable Auto Close Time: After the door opens, auto – close time can be set (0 – 99 seconds) for safety.

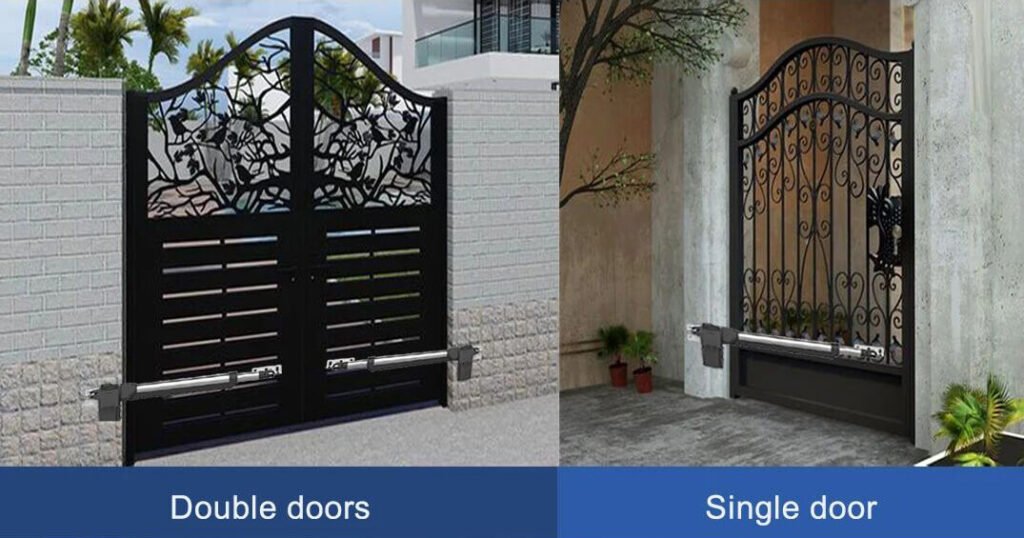

Single/Double Door Compatibility: It offers an option for both single and double doors, so it can adapt to various installation setups.
Heavy Duty Swing Gate Opener: Capacity & Access Options

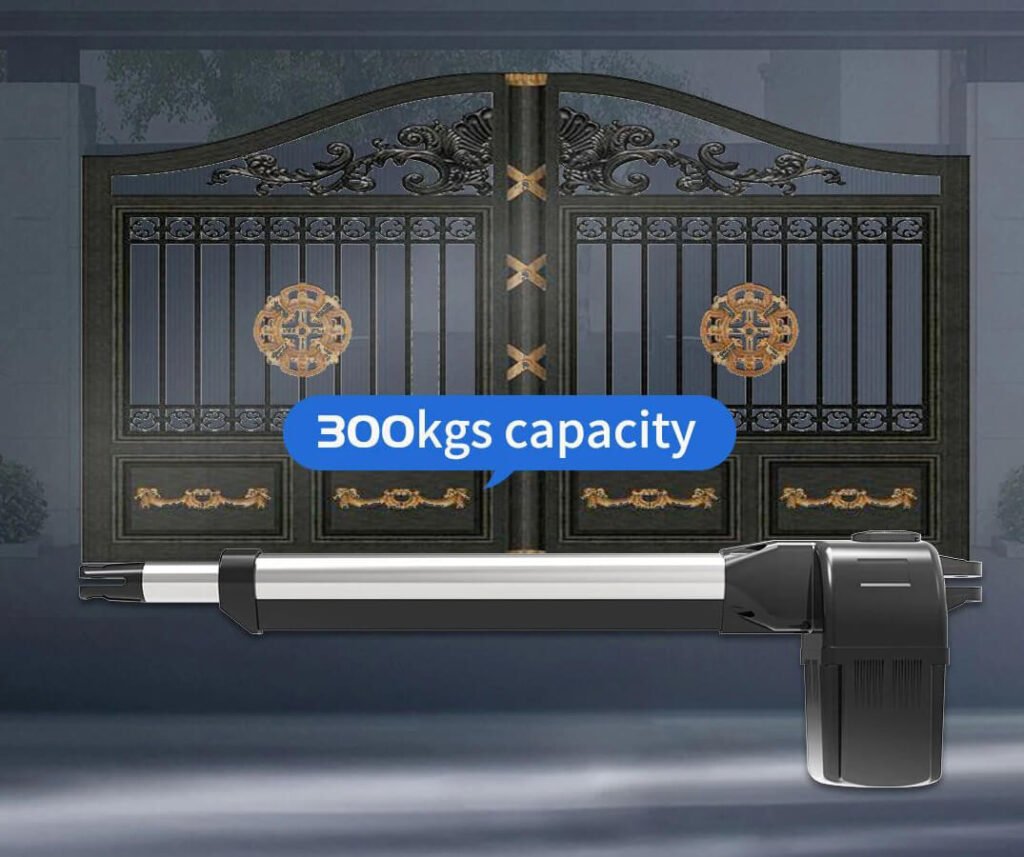

Heavy-Duty Capacity: It can handle doors weighing up to 300Kg, which means it suits most swing doors on the market.

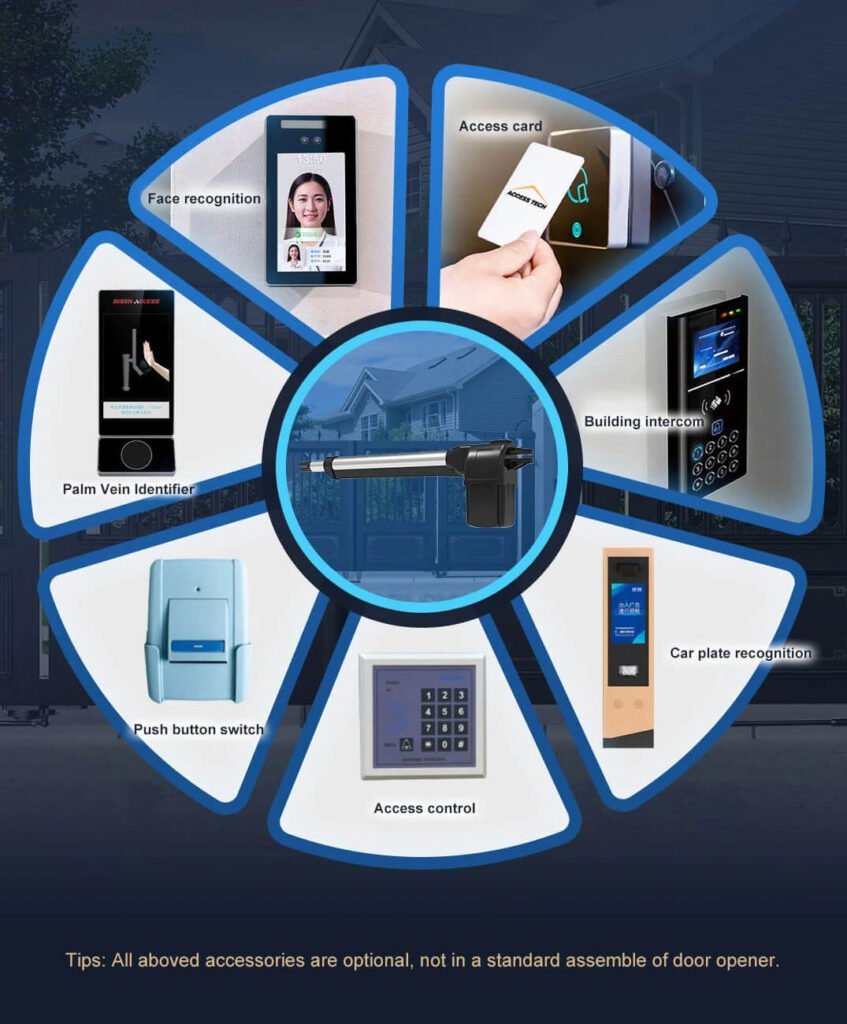

Multiple Access Methods: It supports access ways like face recognition, palm vein identification, and access cards. Note that all these accessories are optional and not included as standard.
Wide Compatibility
It can be installed on both old and new gates made of various materials. Most importantly, this installation process does not damage the gate structure.
Heavy Duty Swing Gate Opener Parameters
- Motor: 24VDC 60W, 1500RPM
- Arm Speed: 1.6CM/S
- Travel: 300mm/400mm/500mm
- Door Specs: 300Kg max weight, 3m max width
- Environment: – 20°C ~ + 55°C operating temp
- IP54 waterproof
- Limit Mode: Magnetic sensor
In conclusion, the Straight Arm Swing Door Opener PK60 is a comprehensive solution for swing gate automation. It not only offers superior performance, safety, and flexibility but also addresses various user needs for swing gate operation. Therefore, it is undoubtedly a new choice worth considering for anyone in need of a swing gate opener.
