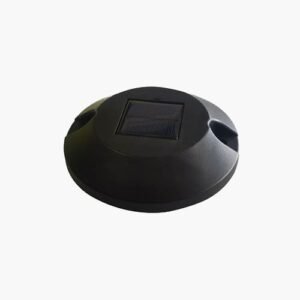

Exit Geomagnetic Remote MDT01

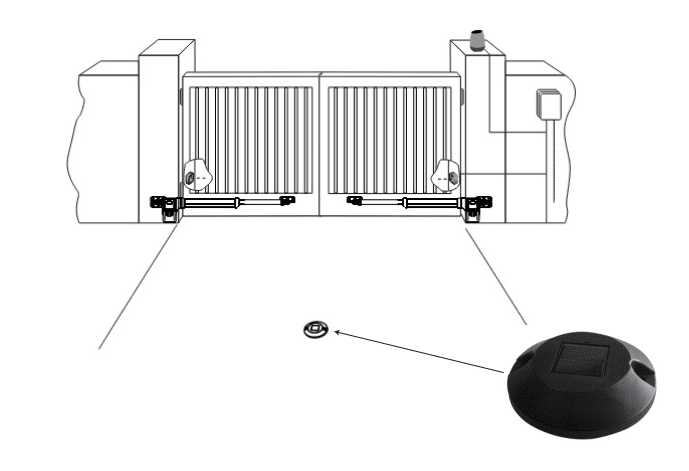

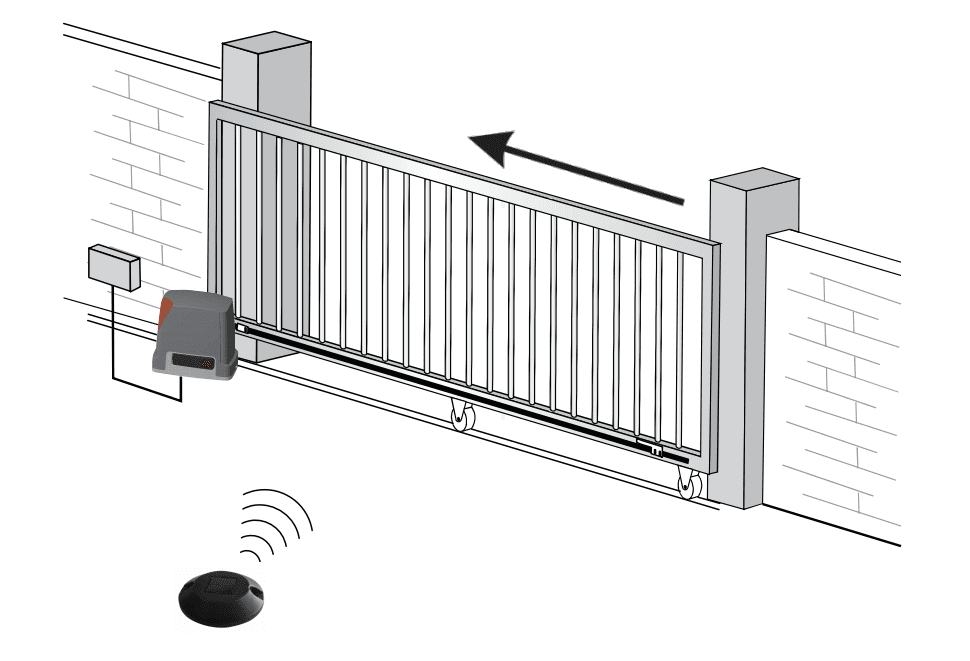

Exit Geomagnetic Remote MDT01 is a wireless signal transmission device. It is based on geomagnetic induction technology and is designed to work with a gate opener. Installed at the exit, it can detect the magnetic field changes of vehicles passing by. Then, it triggers the wireless signal transmission to make the gate opener open automatically.

It has a 6000mAh lithium-ion battery and a solar panel for charging, featuring low-power operation. With 433.92MHz wireless remote control and ASK modulation technology, it ensures reliable signal transmission. The 5-color LED indicators provide real-time feedback on its working status.

Quote

Category: Detection Component

Description
Reviews (0)

Exit Geomagnetic Remote MDT01 – Key Features

Geomagnetic Induction Technology: Detects vehicle/metal magnetic field changes to trigger automatic gate opening—ideal for exit control and smart parking management.
Dual Charging & Long Battery Life: 6000mAh lithium-ion battery + 5.5V/80mA solar panel, low-power design (200μA static current) for more than 3-year service life.
Reliable Wireless Transmission: 433.92MHz ISM band + ASK modulation, 11dBm power, ≤20m transmission distance (7-9m optimal) with strong anti-interference.
IP67 Waterproof & Durable: ABS shell + FR-4 control board, resistant to -10℃~+60℃ and <90% humidity for outdoor use.
Real-Time Status Feedback: 5-color LED indicators show charging, signal transmission, and fault status—easy to monitor.
Simple Setup & Compatibility: One-key TEST/Learn for gate operator code-matching, compatible with most automatic gate controllers.
