Infrared Photocell IR-33 | Anti-Pinch Safety Sensor for Automatic Gates

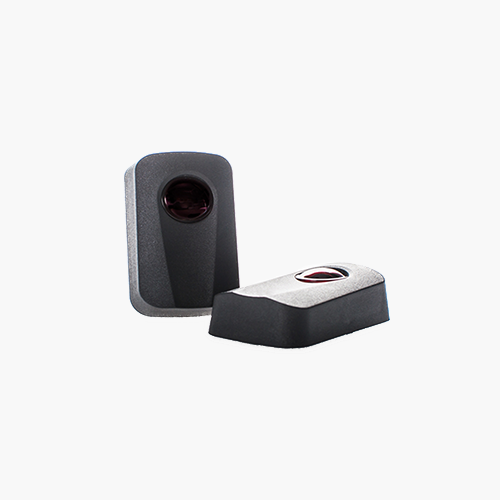

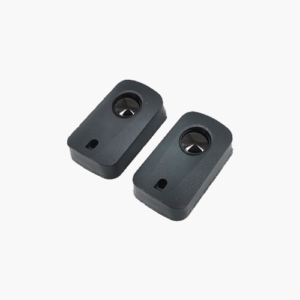

Introduction

The Essential Safety Upgrade for Any Automatic Gate. Safety should never be optional. The IR-33 Photocell Sensor is designed to prevent your heavy automatic gate from hitting obstacles. By creating a synchronized infrared beam across your driveway, it constantly monitors the entrance. It is a “must-have” addition for families with children, pets, or expensive vehicles, ensuring peace of mind every time the gate closes.

Key Features

1. Instant Obstacle Detection: Using a high-frequency 1.92KHz infrared beam, the IR-33 detects any interruption instantly. Whether it’s a running child or a stalled car, the sensor triggers the gate to stop or reverse immediately to prevent damage or injury.
2. 15-Meter Long Range: With a powerful detection range of up to 15 meters (49 feet), this sensor is suitable for everything from narrow residential driveways to wide commercial industrial gates.
3. Universal Compatibility: Engineered with a wide voltage input (AC/DC 12V~24V), the IR-33 works seamlessly with all ACCESS TECH gate openers and most third-party brands (Sliding, Swing, or Garage Doors).
4. Reliable Outdoor Performance: The waterproof housing protects the internal electronics from rain, dust, and sunlight interference, ensuring consistent operation in all weather conditions.
5. Easy Alignment & Install: Features a built-in LED alignment indicator. When the beam is perfectly aligned, the LED turns off, making installation simple and foolproof.

Technical Specification

Frequently Asked Questions (FAQ)

Q: Will this work with my gate opener brand?      A: Yes, in most cases. The IR33 is a universal sensor that accepts 12V to 24V AC/DC power and provides a standard “Dry Contact” relay output (Normally Closed or Normally Open). If your gate opener board has terminals for safety sensors, this will work.

Q: What happens if the beam is broken?      A: If the gate is closing and the beam is interrupted (e.g., by a car), the sensor sends a signal to the gate opener to stop or reverse the gate to the open position immediately.

Q: How high should I install them?      A: We recommend mounting them about 20cm to 50cm (8-20 inches) above the ground. This height is ideal for detecting vehicle bumpers, tires, and small pets.

Q: Do I need wires on both sides of the driveway?      A: Yes. This is a “Wired” photocell system. You need to run low-voltage wires to both the Transmitter (TX) and the Receiver (RX) on opposite sides of the gate.

Q: Is it waterproof?      A: Yes, the IR33 is designed for outdoor use with a weather-resistant casing to withstand rain and dust.

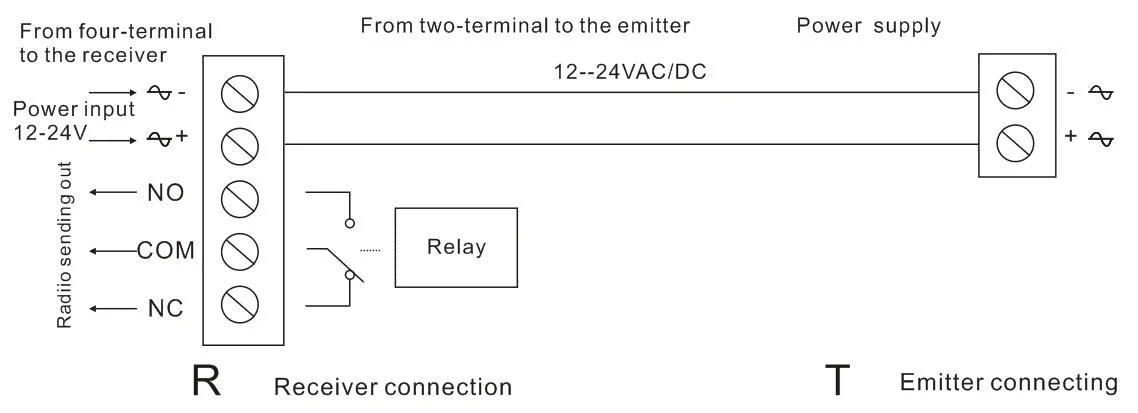

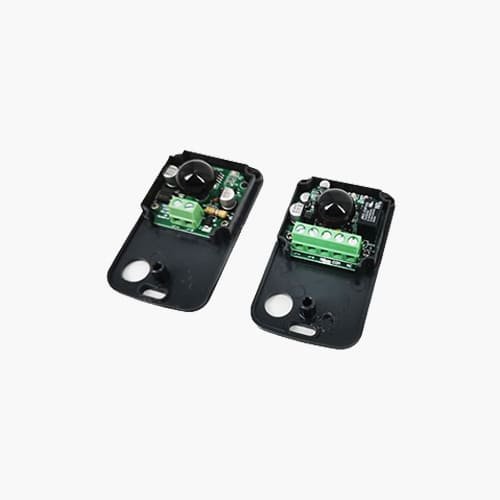

Connecting Instruction

Note

• Installation height should be over 20CM from the ground
• The distance from the EMITTER to RECEIVER shall not be less than 2 meter
• First install the RECEIVER, and then install the EMITTER, vertically. Make sure the EMITTER and RECEIVER are mounted on the same horizontal line, face-to-face. Once they are on the same line, the LED inside of the RECEIVER goes out
• Fix them and connect wires
