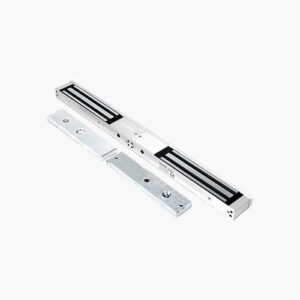

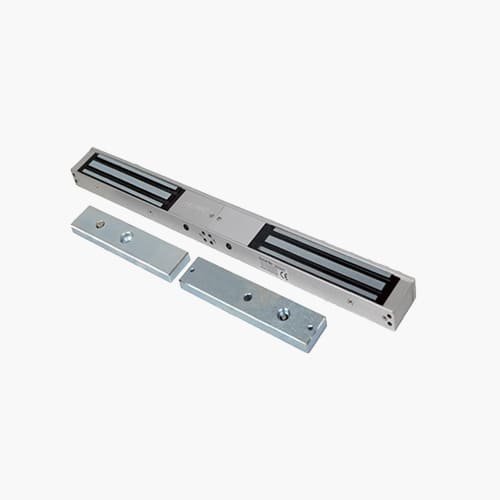

Dual – door magnetic lock
The dual – door magnetic lock is a high – performance access control device. It has a lock body size of 500×47×26 (mm) and suction plates of 180×38×13 (mm)×2. Working on DC 12V±10%, it locks when powered on and unlocks when powered off, with a magnetic field induction sensing method.
It provides a static tensile force of 220KG±10%×2, ensuring strong locking. Suitable for various access control systems, it ensures security and reliability for dual – door applications.
Technical Specification
- Lock Dimensions: 500×47×26 (mm)
- Suction Plate Dimensions: 180×38×13 (mm)×2
- Working Principle: Lock when powered on, unlock when powered off
- Working Voltage: DC 12V±10%
- Sensing Method: Magnetic field induction
- Working Current: 440mA/220mA×2
- Power: 5W + 5W
- Static Tensile Force: 220KG±10%×2
- Indicator Light: Red when powered on / Not lit when powered off
- Service Life: 40,000 cycles
- Ambient Temperature: -20～55°C
- Lock Material: Silicon steel sheet, pure copper enameled wire, aluminum alloy

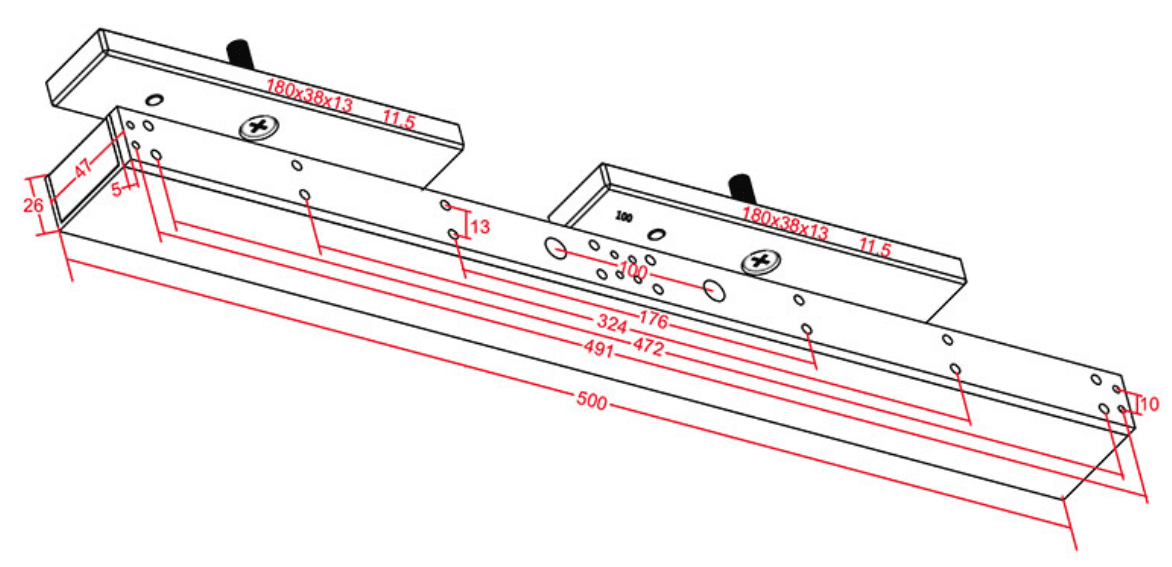

Dimension
