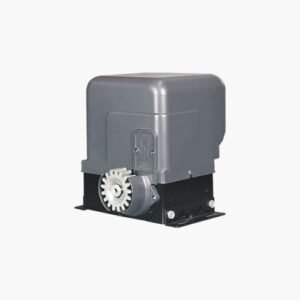

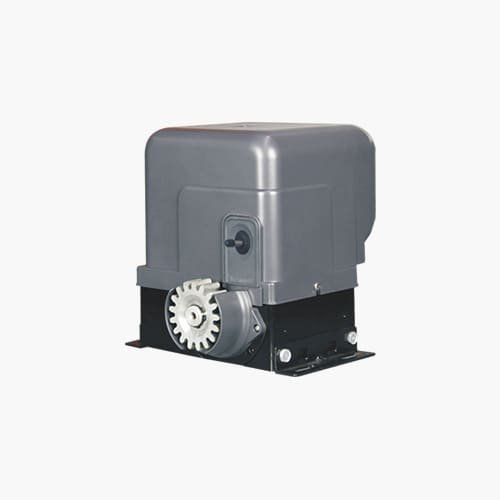

CAN Slider (800kg)
This sliding gate opener CAN slider supports AC 230V/110V, with a 280W motor handling gates up to 800kg. It offers two limit options: magnetic and mechanical limit switches. Can equipped with safety features like photocells, it works in -20°C to 55°C, requiring professional installation.

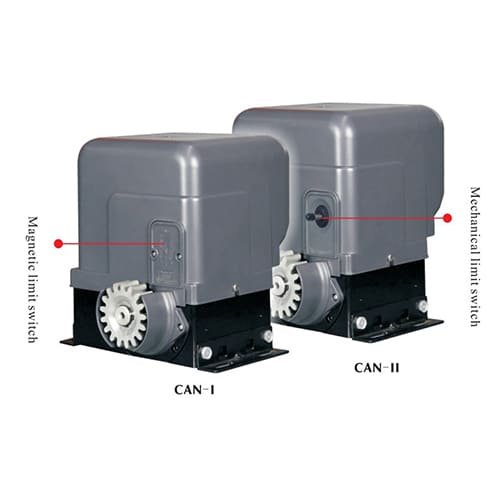

This opener includes transmitters and base plates. With 1400r/min motor speed and thermal protection, it allows adjustable auto-closing. Featuring magnetic or mechanical limit switches, it ensures precise operation, prioritizing safety during use and maintenance.
Technical Specifications
- Description: AC MOTOR
- Power supply: 230V/110V 50/60HZ
- Power of Motor: 280W
- Current: 5A /8A
- Motor rotational speed: 1400r/min
- Max weight of gate: ≤800kg
- Thermal protection on motor winding: 120℃
- Working environment: -20℃~55℃

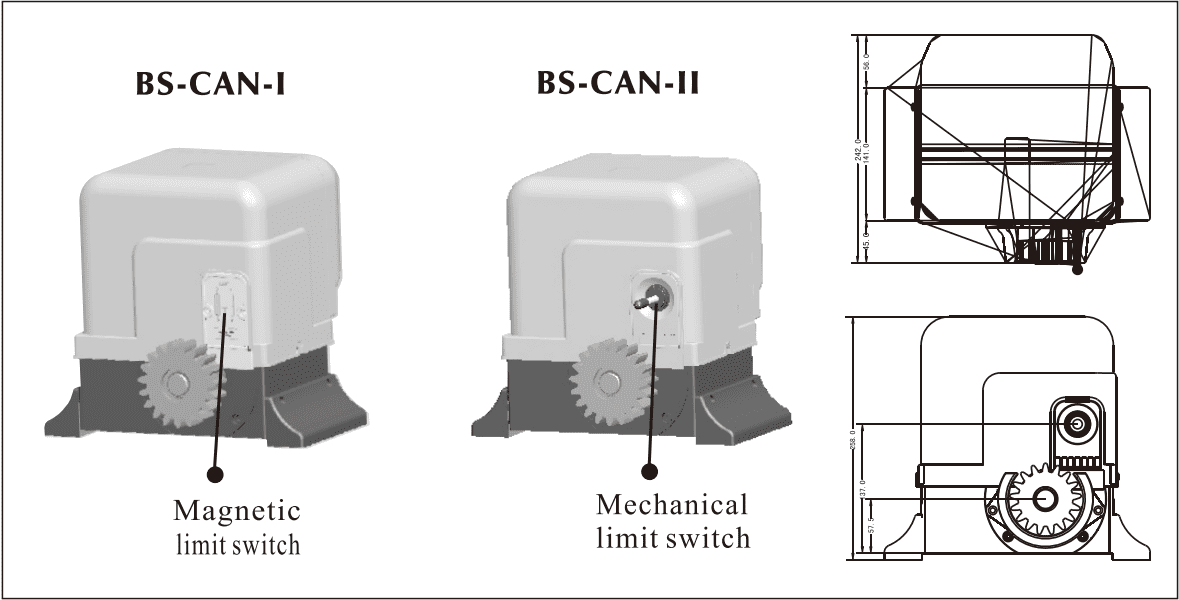

Dimensions

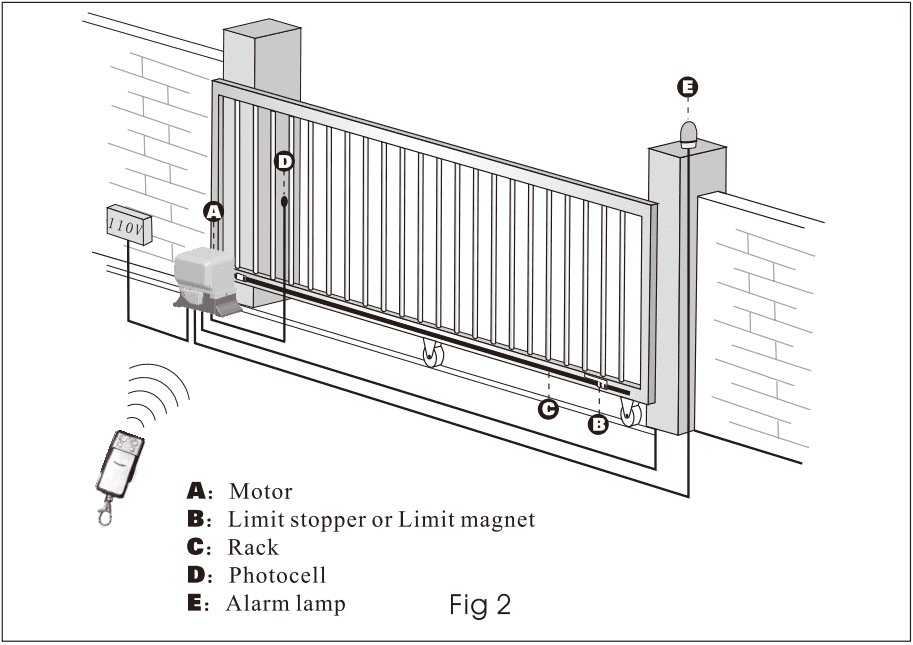

Installation Diagram
