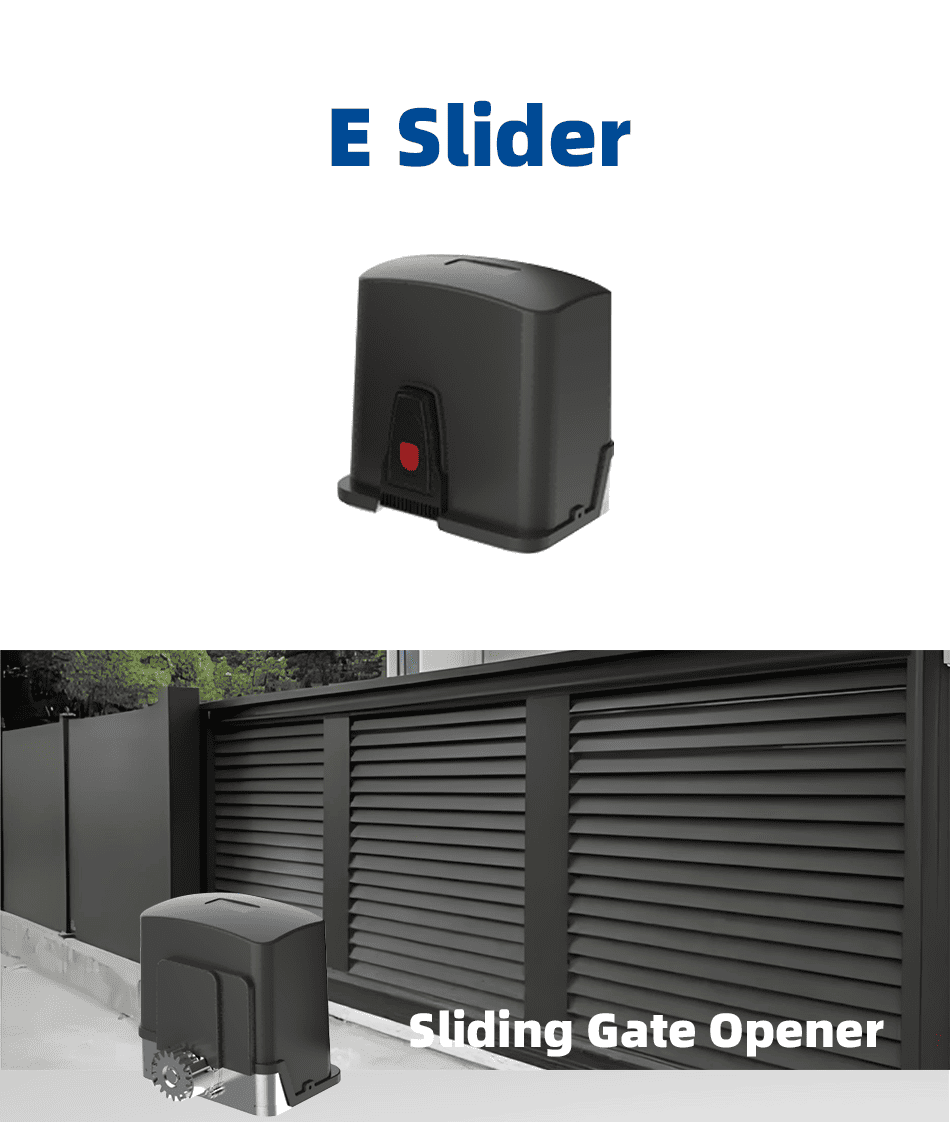

E Slider sliding gate opener (300kg, 400kg, 500kg max gate weight options)

E-Slider (300/400/500kg)

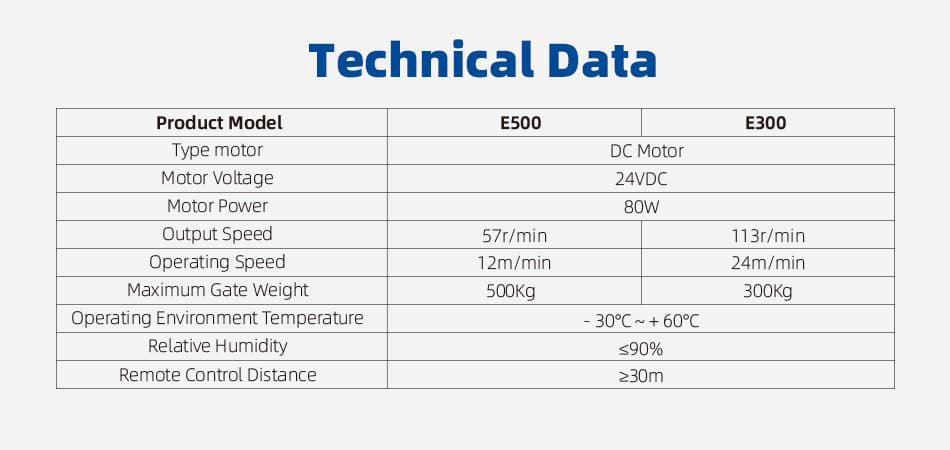

The E-Slider sliding gate opener is equipped with a 24VDC brush motor, available in three models to handle gates with maximum weights of 500Kg, 400Kg, and 300Kg respectively. It operates at speeds of 12m/min, 16m/min, and 24m/min, functions in temperatures from -30℃ to +60℃, and has a remote control range of at least 30m .

Notable features include manual gate operation via clutch release during power outages, soft start/stop, obstacle detection with reverse or stop function, auto-close delay, and compatibility with access control systems. Professional installation is required .

Quote

Category: Sliding Gate Opener

Description
Reviews (0)

E-Slider Sliding Gate Opener – Key Features

24VDC 80W Motor: 3 speed options (12/16/24m/min), supports gates up to 300/400/500kg for residential use.
Extreme Temp Adaptability: Works reliably in -30℃~+60℃, ideal for year-round outdoor deployment.
Intelligent Obstacle Protection: Soft start/stop, reverses/stops on contact with adjustable sensitivity.
Flexible Parameter Settings: Adjustable auto-close delay (0-99s) and max running time (0-99s); 2 remote control modes.
Precise Magnetic Limit: Magnetic sensor enables accurate positioning, with easy travel learning via control board.
Power-Off Manual Release: Key-operated clutch for manual gate operation during power outages.
Safety Device Compatibility: Works with photocells/sensitive edges; optional alarm light for enhanced security.
Multi-Transmitter Management: Supports learning multiple remotes (step-by-step operation) and one-key code erasure.
User-Friendly Control: Intuitive control board with LED display and parameter reset; professional installation required.
