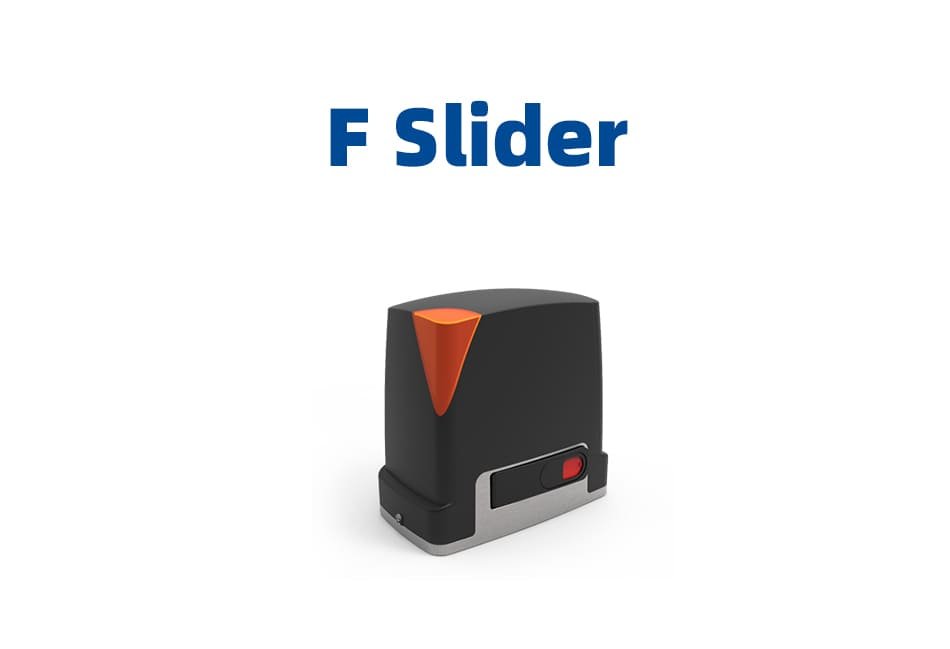

F Slider sliding gate opener with 600kg and 800kg max gate weight options

F-Slider (600/800kg)

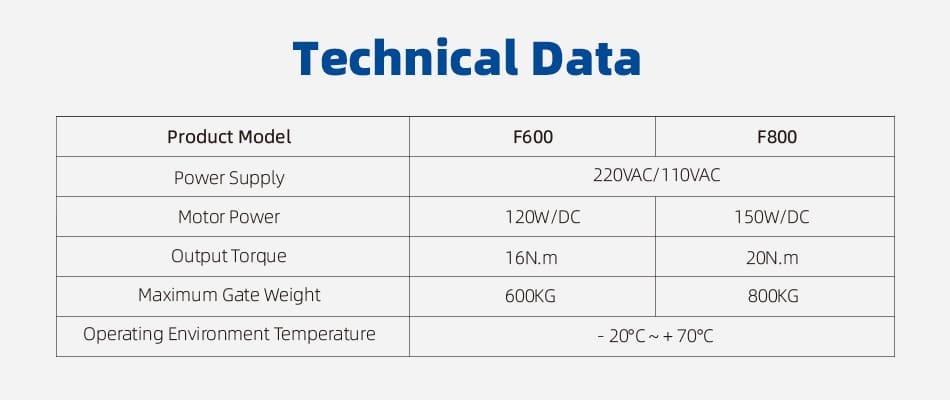

The F-Slider sliding gate opener, with a DC motor, handles gates up to 600Kg or 800Kg. It operates at 220V±10% 50Hz (24VDC motor), runs at 12m/min, and has a ≥30m remote range. Features include soft start/stop, obstacle reverse/stop, and auto-close delay.

Durable in -30℃ to +60℃, it has a quick clutch for manual use during outages. Compatible with access control systems, it requires professional installation for safety and performance.

Quote

Category: Sliding Gate Opener

Description
Reviews (0)

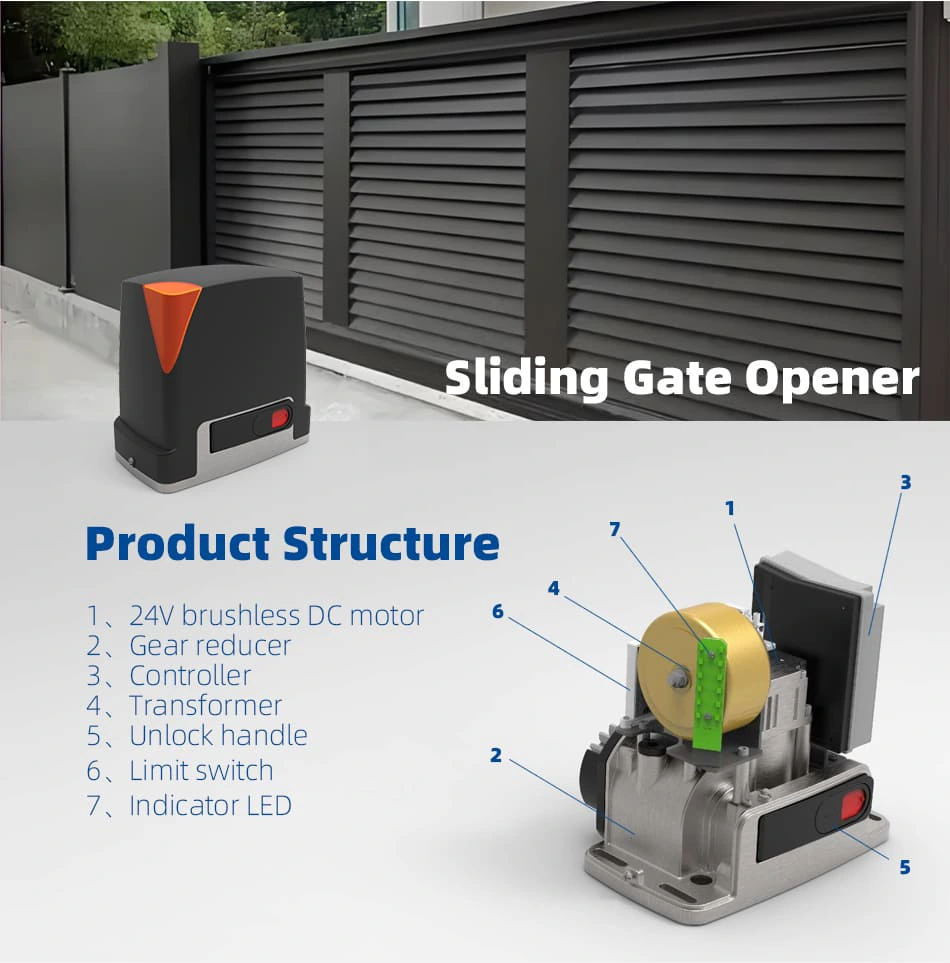

F-Slider Sliding Gate Opener – Key Features

24VDC Dual Power Motor: 120W/150W options, 12m/min speed, supports gates up to 600kg/800kg for residential/commercial use.
Extreme Weather Adaptability: Works reliably in -30℃~+60℃, durable for year-round outdoor deployment.
Intelligent Safety Protection: Soft start/stop + obstacle reverse/stop (adjustable sensitivity), preventing crushing risks.
Customizable Parameter Settings: Adjustable auto-close delay (0-99s), speed, single/three-button control, and motor direction.
Precise Limit Control: Limit switch + magnetic sensors enable accurate positioning, easy stroke setting via control board.
Quick Power-Off Release: 90° horizontal clutch handle for manual gate operation during power outages—ensures emergency access.
Safety Device Compatibility: Works with photocells/sensitive edges; optional alarm/traffic light mode for enhanced security.
Flexible Transmitter Management: Supports multiple remote learning (step-by-step operation) and one-key code erasure.
User-Friendly Operation: Intuitive control board with LED display, parameter reset, and professional installation required.
