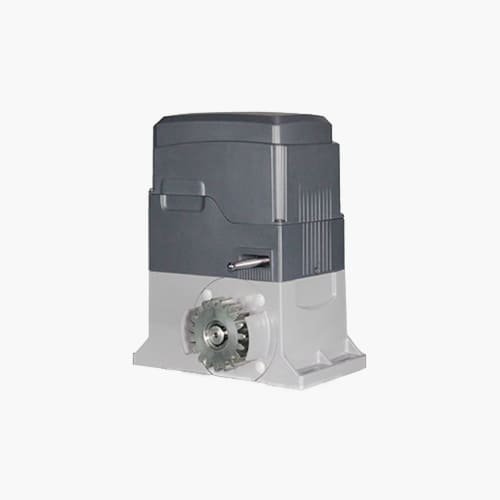

IZ Slider (1200/1500kg)

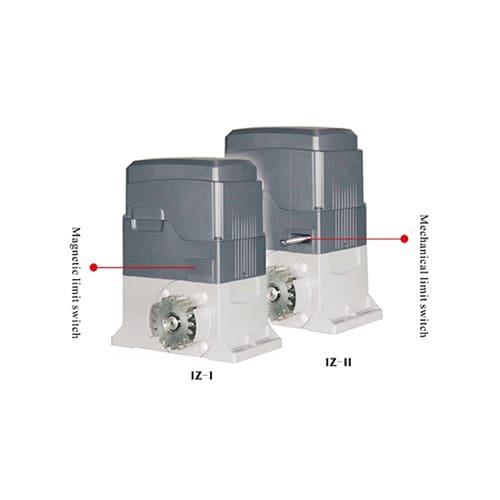

The IZ slider sliding gate opener is a reliable choice for automated gates. It offers two maximum gate weight options: 1200kg and 1500kg. And users can choose between mechanical limit switch and magnetic limit switch, ensuring precise operation.

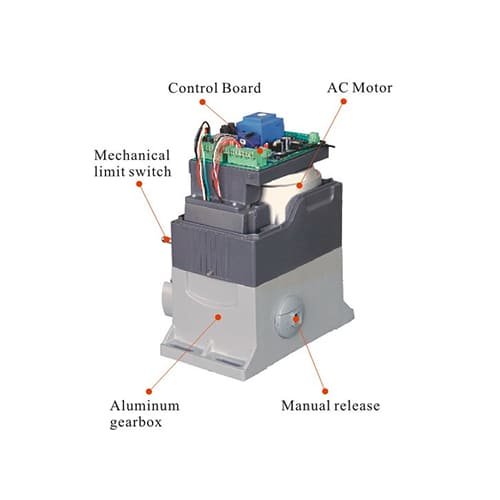

This opener integrates a built-in control board, supporting auto-closing with adjustable delay. It’s designed for safety, compatible with photocells and alarm lamps. Professional installation is recommended to ensure optimal performance.
Technical Specifications
- Rated voltage: AC 230V/110V, 50Hz/60Hz
- Motor power: 370W / 450W
- Absorbed current: 3 A
- Motor rotational speed: 1400r/min
- Thermal protection on motor winding: 120℃
- Ambient temperature: -20℃~40℃
- Max weight of gate: 1200kg / 1500kg

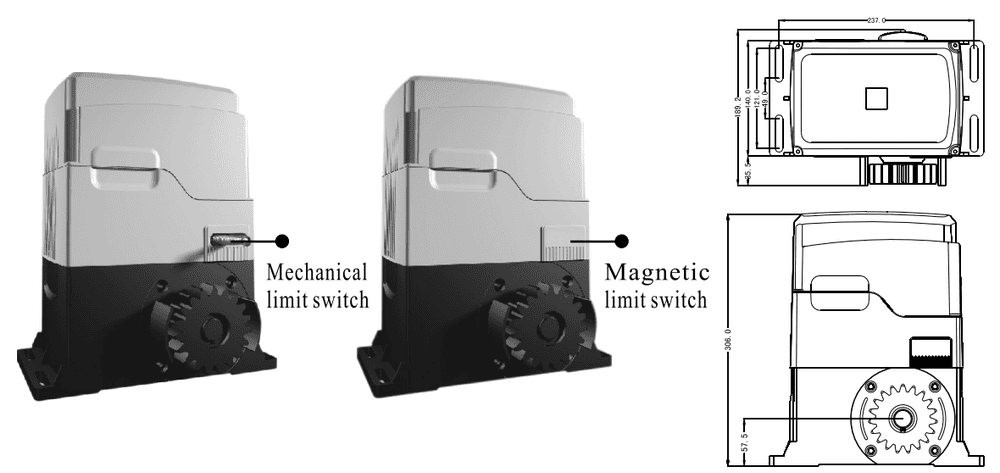

Dimension

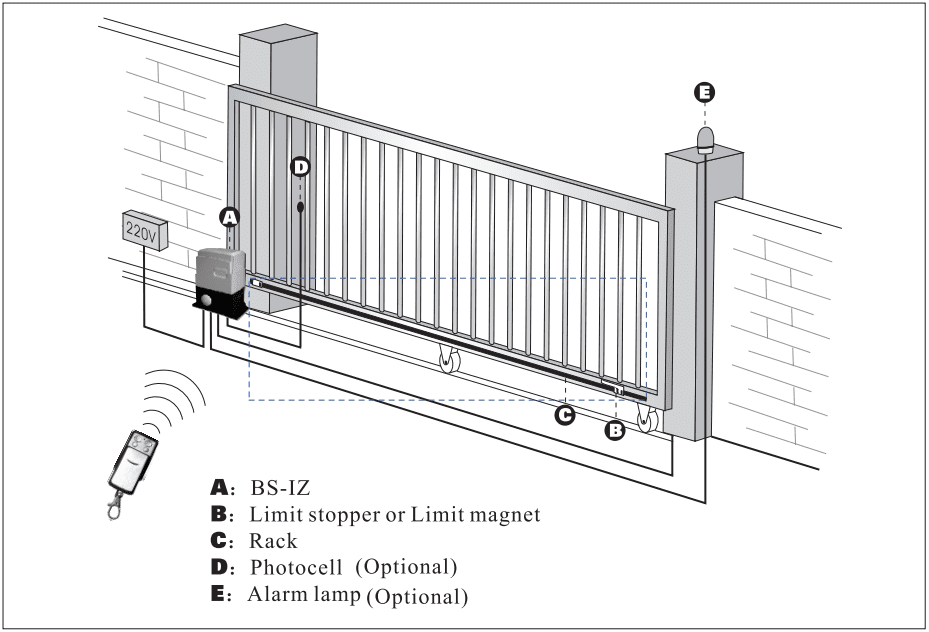

Installation Diagram
