P-Slider 1200kg Heavy Duty Sliding Gate Opener | 24V Brushless Motor & Electromagnetic Brake

Introduction

P-Slider: The Next Generation of Gate Automation When reliability is non-negotiable, choose the P-Slider. Built to handle heavy gates (up to 1200kg) with ease, this operator abandons traditional brushes in favor of a cutting-edge DC Brushless Motor. This means no friction wear, less heat, and continuous operation capabilities, making it perfect for high-traffic entrances or heavy solid gates that demand consistent power.

Key Features

1. Maintenance-Free Brushless Motor: Unlike standard motors that wear out over time, our 24V brushless technology eliminates carbon brushes. This results in a motor that runs cooler, lasts significantly longer, and requires virtually no maintenance.
2. Powerful 1200kg Capacity: Engineered with a robust gear reducer and a 120W motor, the P-Slider effortlessly moves gates weighing up to 1200kg, making it suitable for large iron gates or fully enclosed heavy doors.
3. Electromagnetic Brake System: Security is paramount. The built-in electromagnetic brake automatically locks the motor when the gate stops or power is cut. This prevents the heavy gate from sliding due to inertia or being forced open, providing a higher level of anti-theft protection.
4. Smart 24V Control: The intelligent control board offers “Soft Start and Soft Stop” to protect your gate structure. It also supports adjustable speed settings and auto-close delay (0-99s) for fully customized operation.
5. Power Failure Solution: In the event of a power outage, the clutch can be easily released using the provided key, allowing you to open the gate manually.

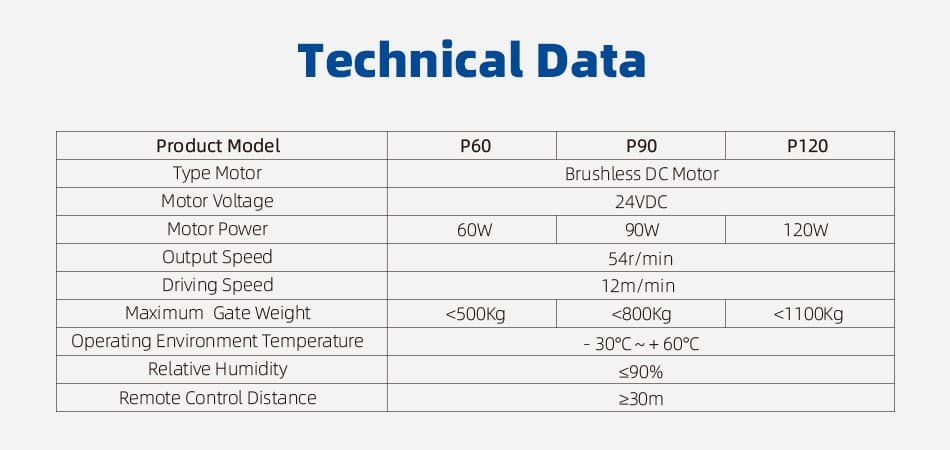

Technical Specifications

What’s in the Box?

• 1 x P-Slider Gate Motor Unit

• 2 x Remote Controls

• 1 x Base Plate & Mounting Hardware

• 2 x Manual Release Keys

• 1 x User Manual

• (Optional: Photocells, Warning Light)

Frequently Asked Questions (FAQ)

Q: What is the advantage of a Brushless Motor (P-Slider) over a normal motor?      A: Brushless motors are more efficient and durable. Because there are no brushes to create friction, they generate less heat and noise, and the internal parts do not wear out. This makes the P-Slider ideal for heavy usage where reliability is key.

Q: My gate is very heavy (1000kg). Is this opener strong enough?      A: Yes, absolutely. The P-Slider is rated for gates up to 1200kg. Its high-torque DC motor and robust gear reducer are specifically designed to move heavy industrial or commercial gates smoothly.

Q: What does the Electromagnetic Brake do?      A: It is a safety lock. When the motor stops running, the brake engages to physically hold the motor shaft in place. This ensures that a heavy gate won’t slide downhill on a slope or be easily pushed open by intruders.

Q: Can I add a backup battery?      A: Yes, since the P-Slider operates on a 24V DC system, it is compatible with backup battery systems and solar power kits, ensuring operation even when the mains power is out.
