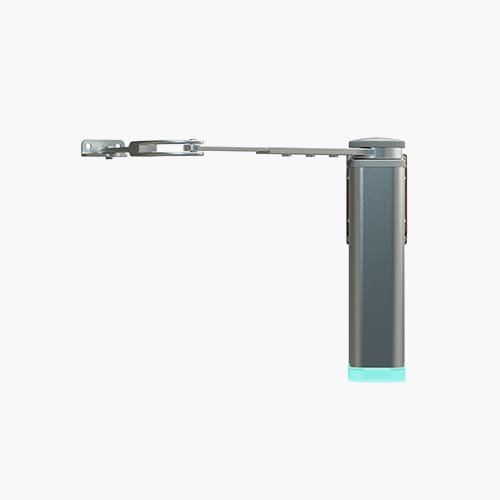

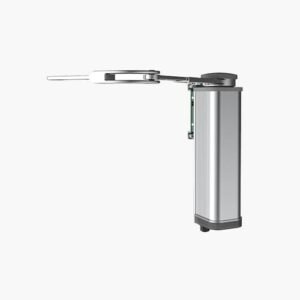

Swing Gate Opener PK29
The PK29 swing gate opener features 24V DC voltage drive and a DC brushless motor, ensuring safety and reliability with a 2 million-cycle lifespan . Its self-designed gearbox offers stable, low-noise operation. It has reverse, soft start/stop, and auto-close functions.
LED indicators show states: green (full open), red (opening/closing), yellow (blocked/fault) . IP54 rating suits outdoor use. It connects external devices like photocells and access control systems, with fire alarm linkage.
Feature
- 24V DC drive: safer, more reliable
- DC brushless motor with hall element: precise limiting, stable operation, 2 million-cycle long lifespan
- Self-designed gearbox: stable structure, low running noise
- Safety-focused reverse function: retracts the gate if blocked while closing, stops immediately if blocked while opening
- Soft start & soft stop for smooth operation
- Auto-close function included
- LED status indicators: green (fully open), red (opening/closing), yellow (blocked/fault)
- IP54 rating: ideal for outdoor use
- External connectivity: supports photocells, radar, access control systems (face recognition, card readers, fingerprint scanners) and other sensing devices
- Fire alarm linkage support
Technical Data
- Motor power: 24VDC/90W
- Motor rotational speed: 1500RPM±10%
- Open/Close time: 5 – 15S(adjustable)
- Max open angel: 120°
- Working environment: -20°C – 50°C
- Max gate width: 1800mm
- Max gate weight: 180Kgs

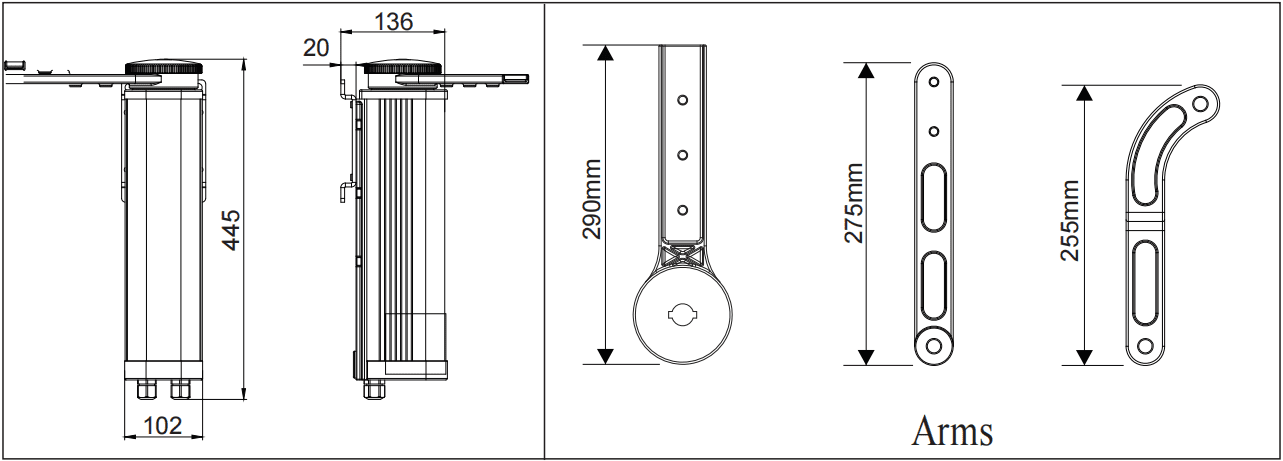

Dimension

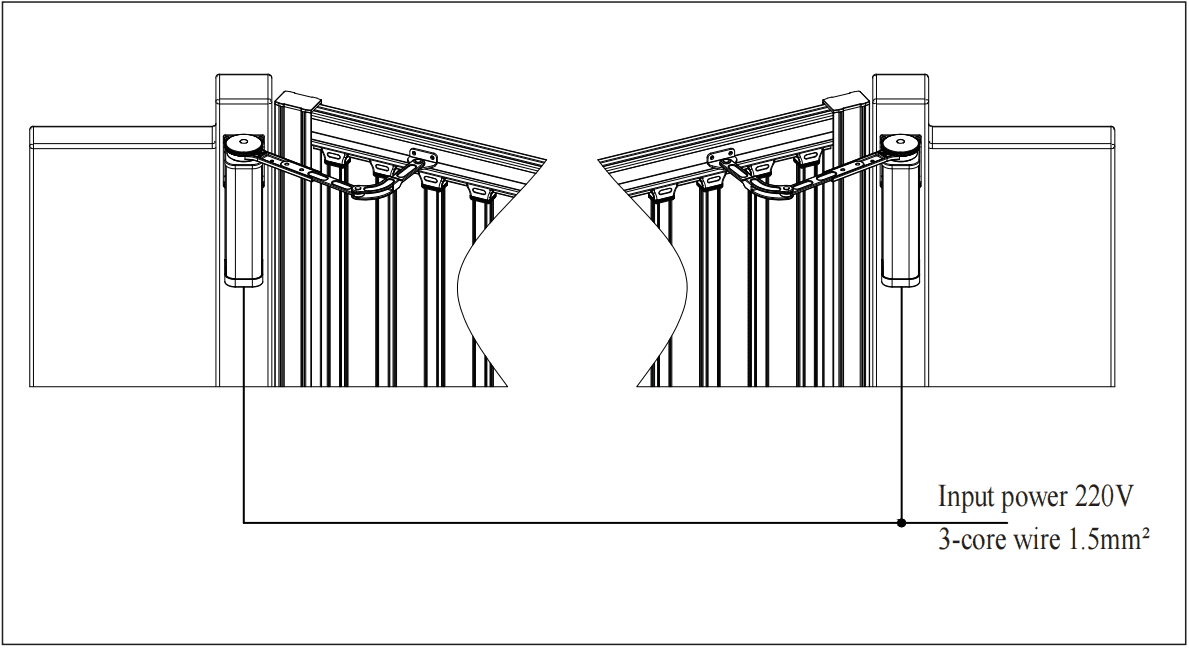

Installation diagram
