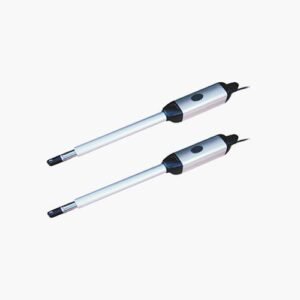

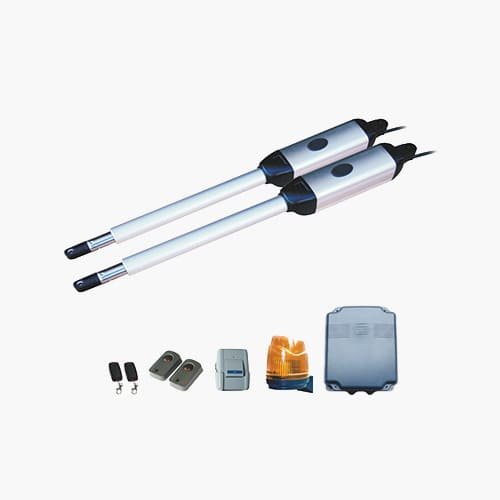

Swing Gate Opener PK03
The PK03 is an swing gate operator designed for specific swing gate use. It features a 24VDC 40W motor with a rotational speed of 3200RPM. The rod operates at 1.6cm/s, with a maximum travel of 330mm (400mm optional) .
It can handle a maximum leaf length of 3m×2 and a single-leaf weight of 300Kg. The operating temperature range is -20℃~+55℃, with a protection class of IP44 and a continual run time of 5min.
Swing Gate Opener PK03 – Key Features
Technical Specifications
- Power of motor: 24VDC 40W
- Rotational speed: 3200RPM
- Rod’s running speed: 1.6cm/s
- Rod’s max travel: 330mm (400mm Optional)
- Max leaf length: 3m×2
- Max single – leaf weight: 300Kg
- Environment Temperature range: -20℃~+55℃
- Protection class: IP44
- Continual run time: 5min

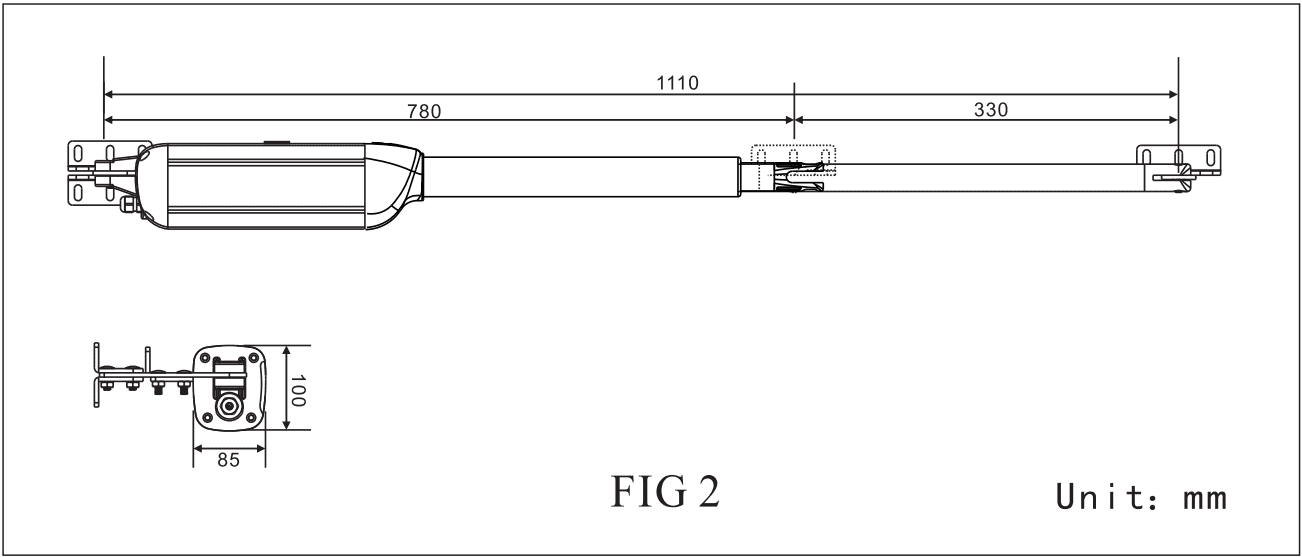

Dimension

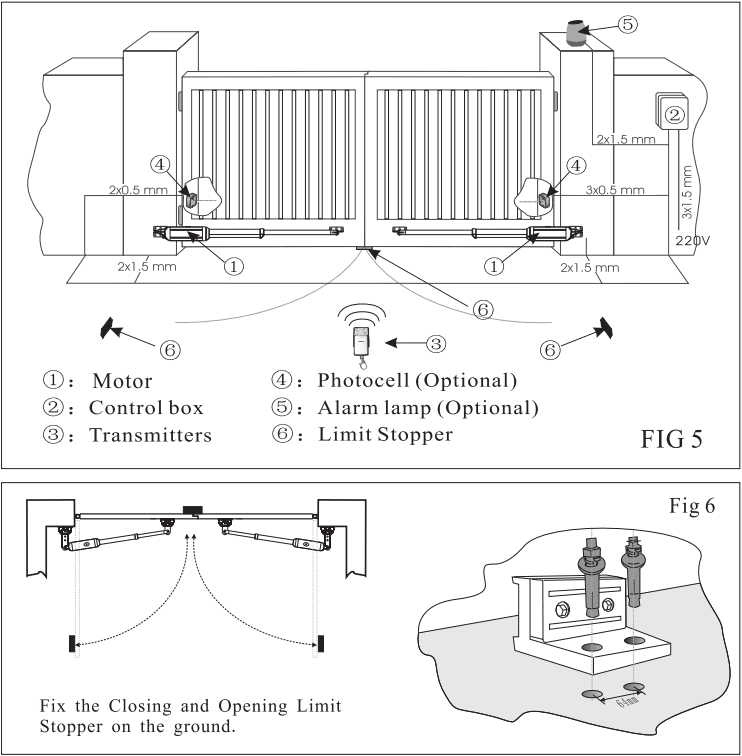

Installation Diagram
